Foundation Power Supply

Stable power delivery, a solid foundation for the whole system

Foundation Series

Dual Outputs, Flexible Configuration

Foundation Power Supply is built around stable power delivery, dual outputs and flexible configuration. Two output specifications are offered — Standard Version and Special Version — to match the requirements of different audio components.

Every unit carries two output ports. Each output can be switched independently within the voltages its version supports, so a single PSU powers two devices at once.

2: Independent outputs
6A: Current per output
2: Spec versions

Two Versions

Choosing the Right Version

The two versions cover different output voltage ranges. Choose the correct version according to the rated input voltage of the equipment you intend to power.

Standard Version 5V / 12V

Special Version 5V / 9V / 12V / 15V

Standard / Special

Standard and Special Versions

Standard Version and Special Version are different output specifications. Choose the one that matches the rated input voltage of the equipment being powered.

Standard Version

5V / 12V switchable on both outputs

The chassis carries two output ports. Each can be set independently to 5V or 12V, following the rated input voltage of the device connected to it.

Output Configurations

Output 1: 5V / Output 2: 5V
Output 1: 5V / Output 2: 12V
Output 1: 12V / Output 2: 12V

Output 1 Display Status

Red 5V / 6A

Yellow 12V / 6A

Output 2 Display Status

Red 5V / 6A

Yellow 12V / 6A

Whether the two devices call for the same voltage or different ones, the outputs can be configured to suit, adding flexibility to how the system is powered.

Special Version

Four output voltages: 5V / 9V / 12V / 15V

The Special Version also carries two output ports. Output 1 can be set to 5V or 9V and Output 2 to 12V or 15V, covering a wider range of equipment.

Output Configurations

Output 1: 5V / Output 2: 12V
Output 1: 5V / Output 2: 15V
Output 1: 9V / Output 2: 12V
Output 1: 9V / Output 2: 15V

Output 1 Display Status

Red 5V / 6A

Green 9V / 6A

Output 2 Display Status

Yellow 12V / 6A

Blue 15V / 6A

With each output selected independently, the supply can be matched to devices with different requirements, making system configuration more flexible.

Before use, check the indicator colour of both outputs and confirm that the rated input voltage of each connected device matches the current output setting.

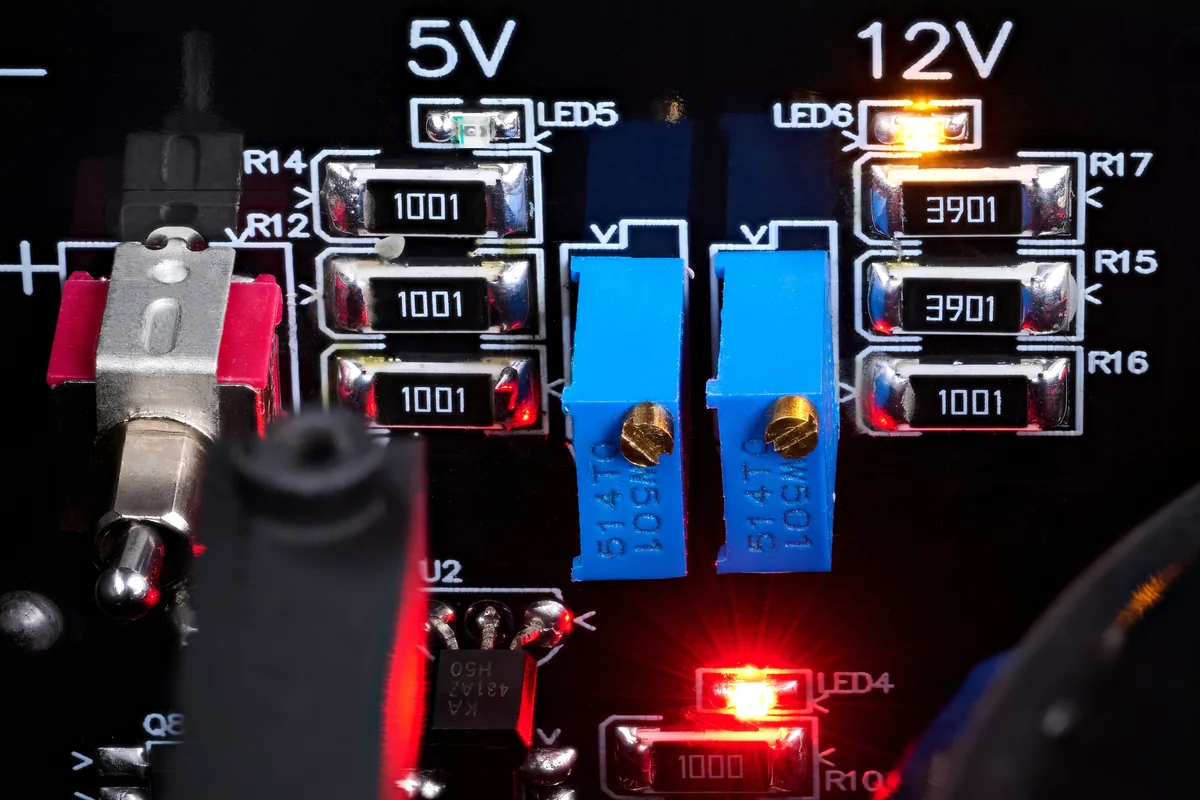

Voltage Switching

Before Changing the Output Voltage

Both outputs of the Foundation Power Supply are voltage-switchable. The Standard Version selects between 5V and 12V. On the Special Version, Output 1 selects between 5V and 9V, and Output 2 between 12V and 15V.

If an output voltage needs to be changed, please contact us first and request the product manual. Confirm the correct method and the full operating procedure before making any change.

Confirm Before Switching

Whether the PSU is the Standard or the Special Version
The rated input voltage of the connected device
The current settings of Output 1 and Output 2
The output voltage each indicator colour represents

Specification

Nude packed size 38.5 * 28.6 * 11.8（cm）

Packaged size 63 * 61.5 * 20（cm）

Nude packed weight 16 kg

Packed weight 20.5 kg

Power input 110V / 220V (rear-panel voltage selector)

Output voltage 5V / 12V (Standard Version) ; 5V / 9V / 12V / 15V (Special Version)

Current per output 6A

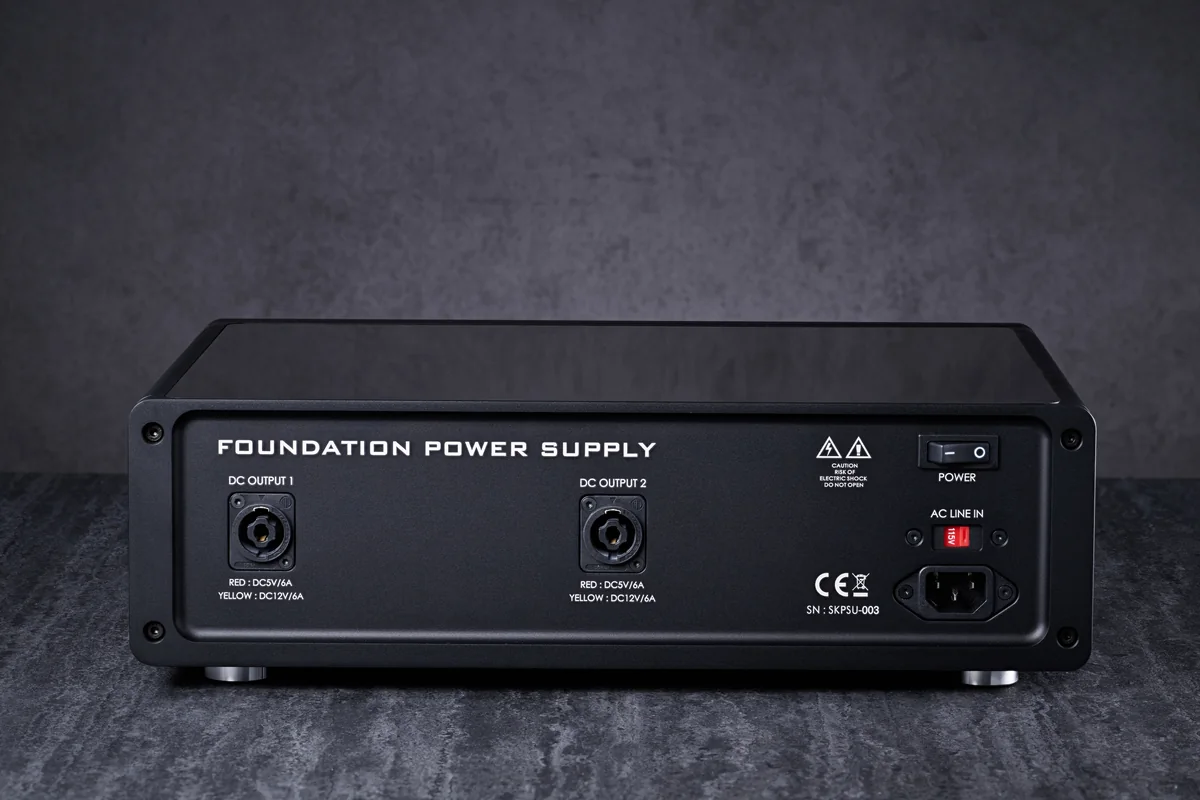

Output ports DC OUTPUT 1, DC OUTPUT 2 (2 in total)

Plug standard US / EU

Accessories

DC cable 2 pcs

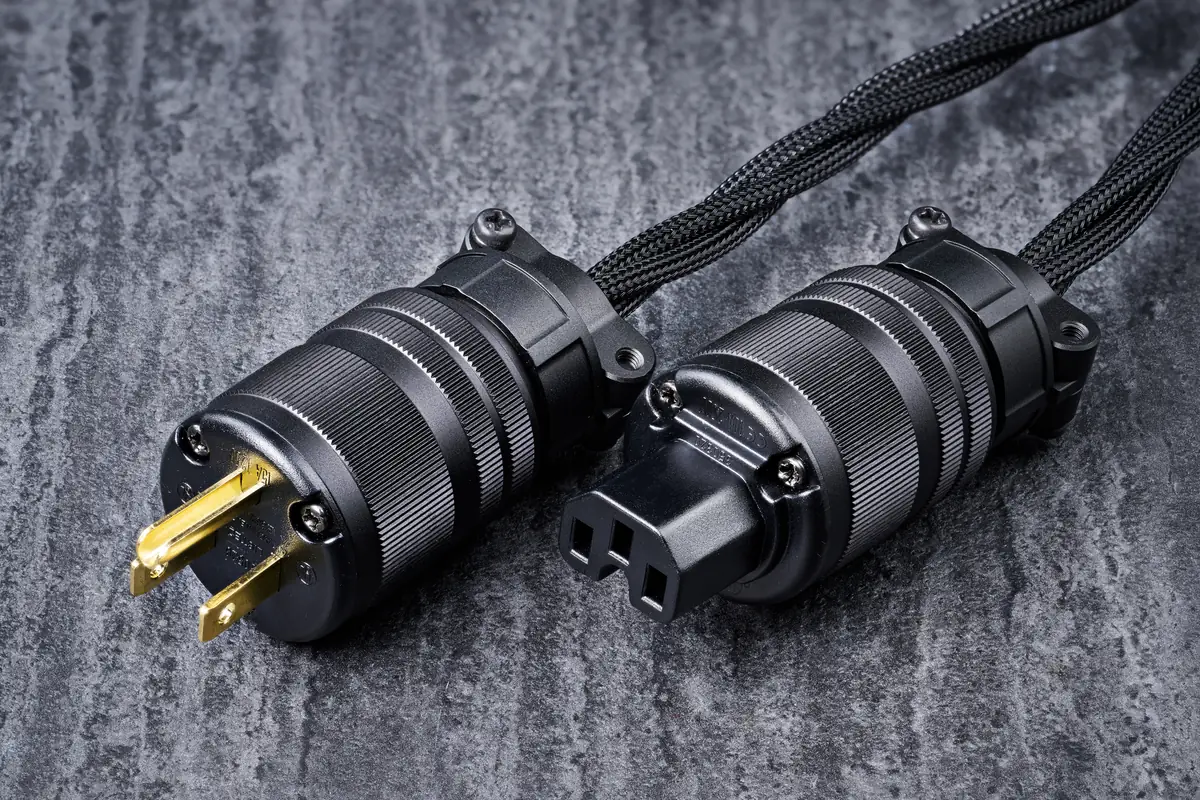

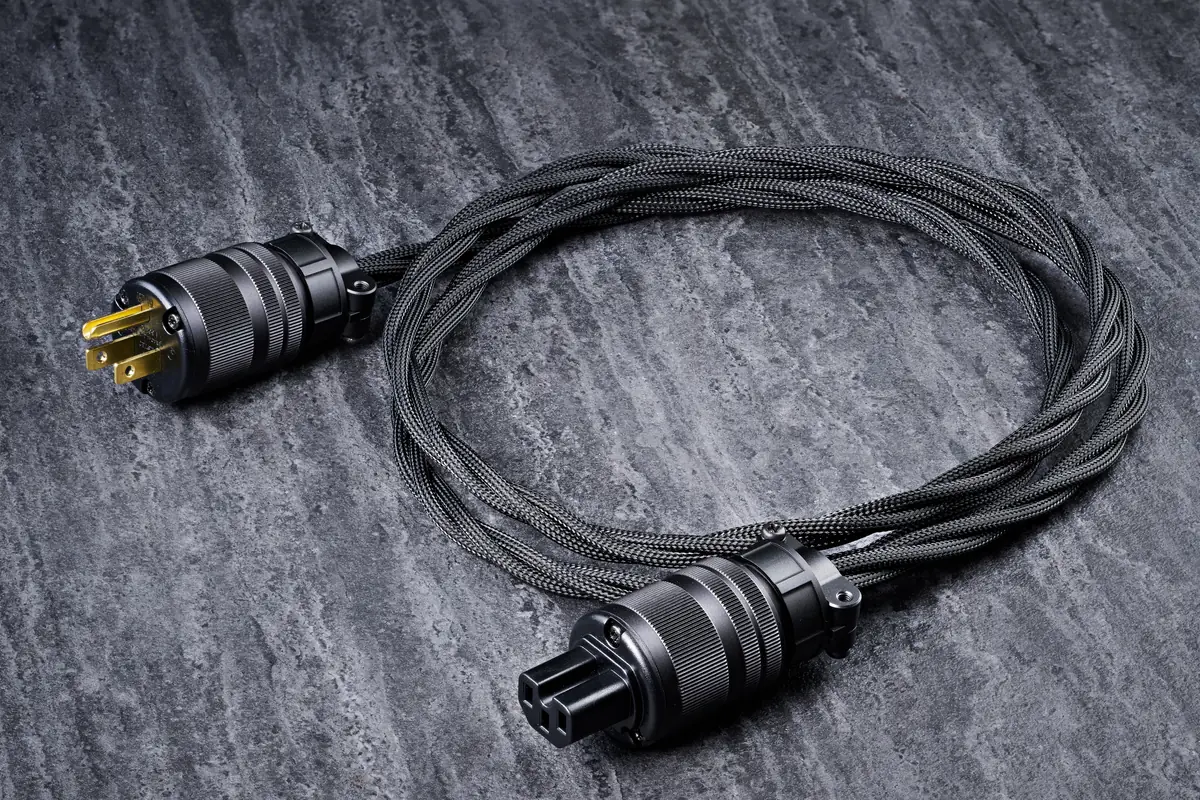

Power cord 2 pcs

Adapters 1 set (8 pcs)

Certified
